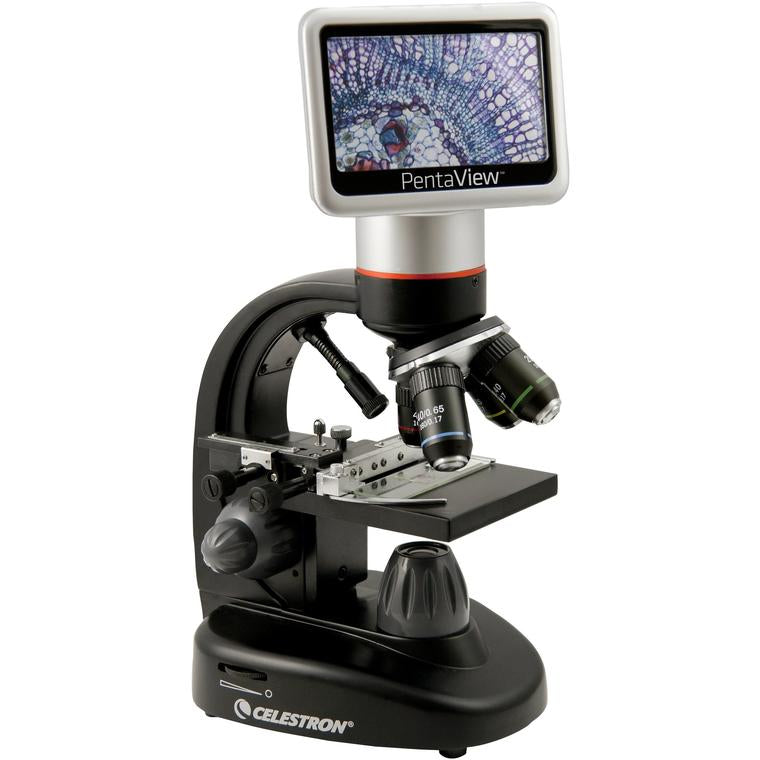

Celestron PentaView LCD Digital Microscope


  • 40x to 600x magnification, up to 2400x with digital zoom
  • 4.3" LCD touchscreen
  • 5MP CMOS built-in digital camera
  • 5 fully achromatic objective lenses: 4x, 10x, 20x, 40x, 60x
  • Top & bottom adjustable LED illumination

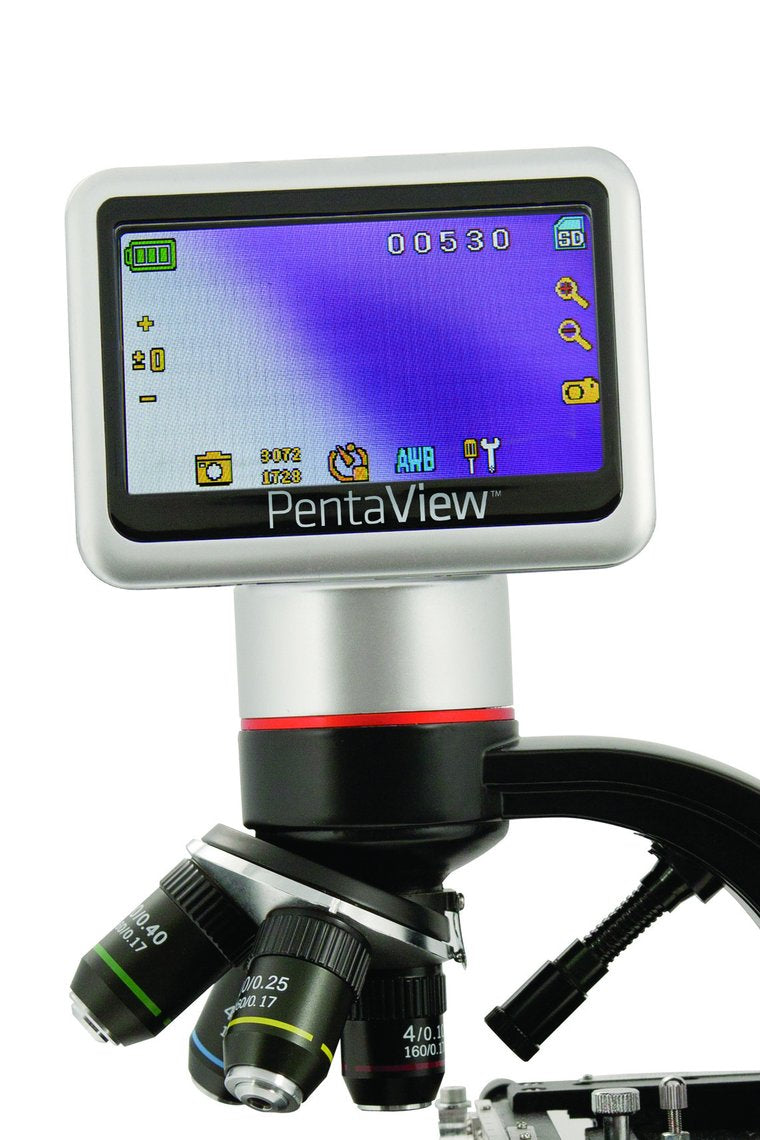

  • 180° rotatable LCD screen
  • Fully mechanical stage
  • Coarse and fine focus knobs
  • Filter wheel/diaphragm
  • AV/TV output with cable
  • Optional battery mode
  • SD card slot with 8GB SD card included (Supports up to 32GB)
  • Universal AC adapter with multi-plugs for international usage

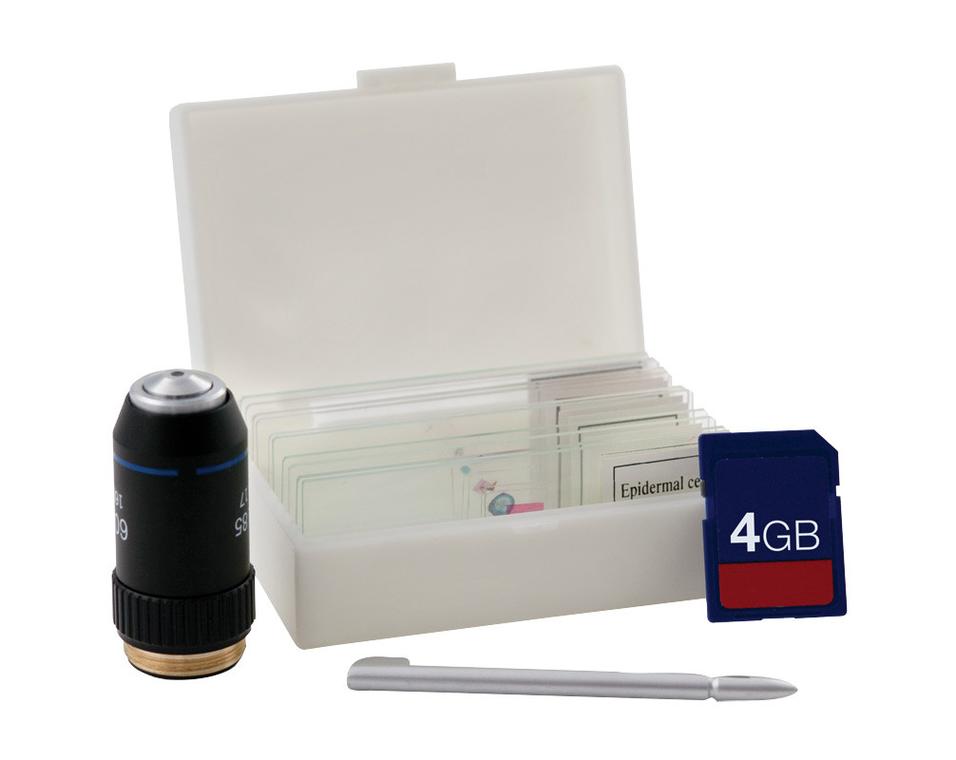

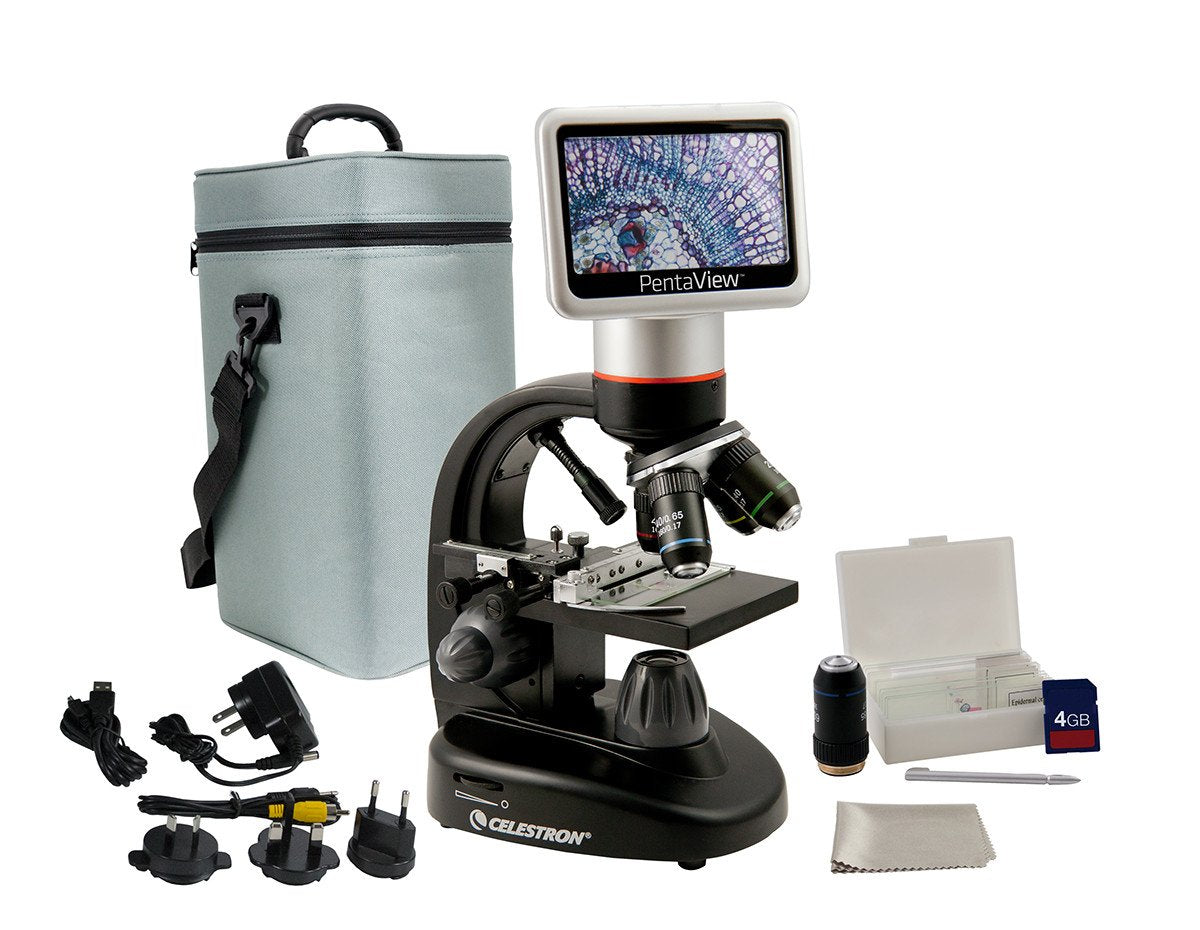

  • Accessories included: 10 prepared slides, hard carrying case, dust cover, touch pen, USB cable, AV cable

DESCRIPTION

The professional-level Celestron PentaView LCD Digital Microscope is a touchscreen LCD microscope with advanced features at a reasonable price. PentaView features 5 fully achromatic lens objectives, a mechanical stage, a 4.3” TFT full color touch screen, 5MP CMOS sensor, and a 8GB SD card for storing your photos and videos. Taking high-resolution images and video of specimen slides has never been easier.

The LCD screen rotates 180 degrees so you can easily share your viewing with others. For an even bigger audience, use the TV output to display on a television or projector. With magnification from 40 to 600x (2400x with digital zoom), PentaView is ideal for viewing a range of cellular specimens on slides.

Great for the discriminating professional or serious hobbyist, the LCD Digital Microscope with touchscreen is an excellent tool for labs, schools, scientific research, and more.

SPECIFICATIONS

Imaging Sensor 5MP CMOS ½ 5", 10x magnification in lieu of eyepiece
AC Adapter Input universal 100 to 240 volt, 50/60 Hz, 4 plug multi-country
USB Connection 2.0, 1.5 m cable included
Magnification (low power) 40x
Magnification (high power) 400x
Continuous Video (VGA) Yes, 20 fps
Batteries 4 AA (user-supplied)
Objective Nosepiece 4 position with click stop
Objective Lense Diameter 4 achromatic - 4x, 10x, 20x, 40x
Condenser Lens 0.65
Illumination Lower, built-in adjustable LEDs
Stage Fully mechanical with metal clips, 88mm x 88mm (3.5" x 3.5")
Dimensions 178mm x 140mm x 330mm (7" x 5.5" x 13")
Weight 67 oz (1.9 kg)
LCD Screen High definition touch, 480 x 272 pixels resolution, 109mm (4.3") with 4x digital zoom, rotates 180°
Fine Focus Yes
**United States Shipping Only**
**FREE Shipping on Celestron Products**
$429.95 USD
