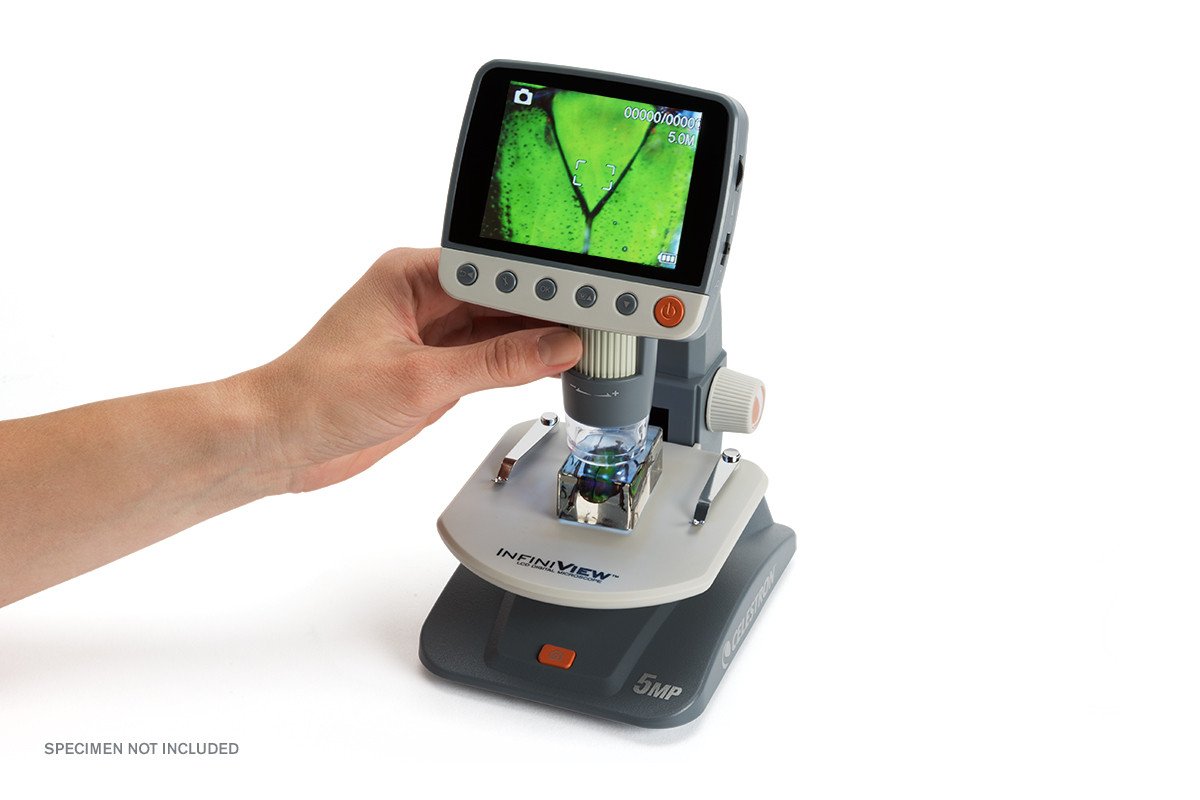

LCD Digital Microscope Specs
SPECIFICATIONS
Powers | 20x to 200x (800x with digital zoom) |
Magnification (low power) | 4x with LCD, 20x with computer |
Magnification (high power) | 160x with LCD, 200x with computer |
Objective Lense Diameter | 5-element IR cut, high quality glass lens |
Lens | 5 element IR Cut (Infrared reducing) high quality glass lens, EFL (Effective Focal Length) : 15.8mm |
Focuser Range | 10mm to infinity |

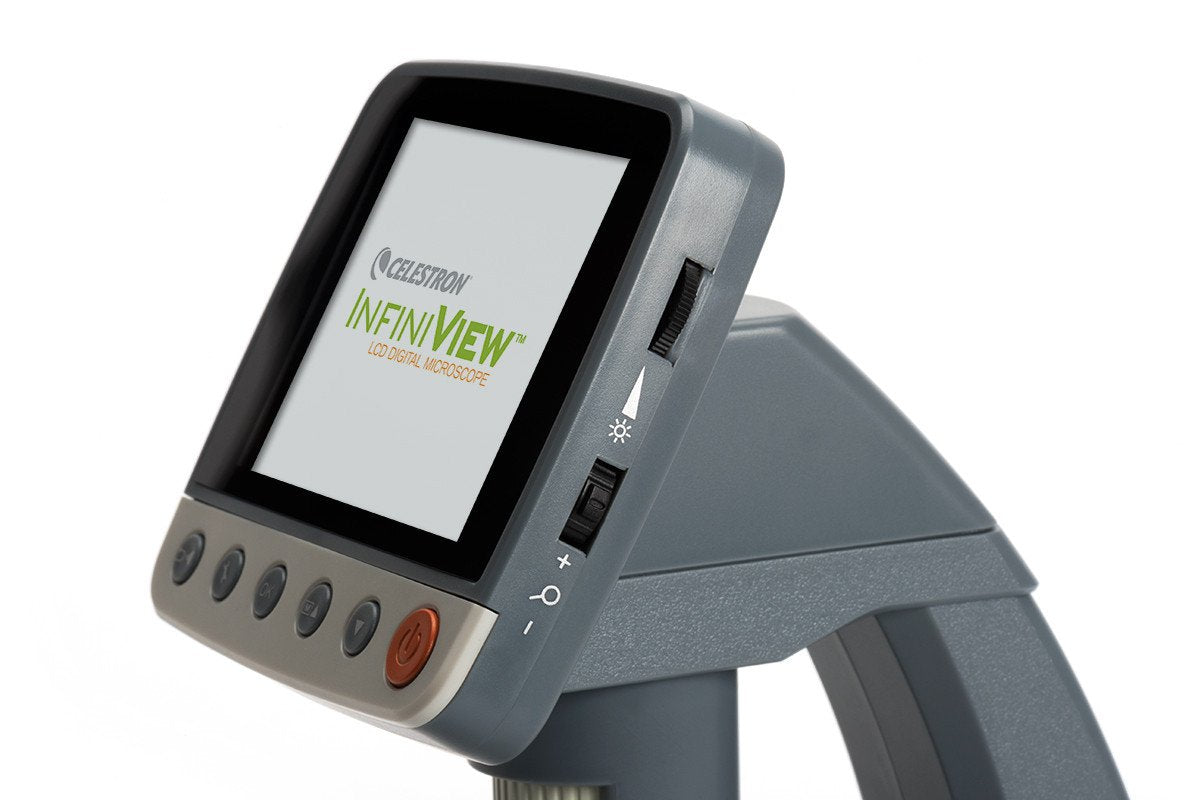

LCD Screen | 90mm (3.5") TFT LCD with 4x digital zoom, 4 |
Imaging Sensor | 5MP CMOS 1/3.2", 10x magnification in lieu of eyepiece |
Shutter Speed | 1 sec. to 1/1000 sec. |
Image Stabilization | Flicker Control 50Hz/60Hz |
Still Image Resolution | 5MP, 3MP, 1.3MP, VGA (12MP interpolation) |
Video Capture Resolution | VGA, 30 fps |
Measuring Software | Robust measuring software with note taking capabilities. Calibration tool included. |
AC Adapter | Input Universal 100 to 240Volt 50/60HZ (US version only) |
TV Output | AV cable for external monitor |
USB Connection | 2 |
Continuous Video (VGA) | Yes, 30 fps |
Batteries | 1050 mAh rechargeable Li-Ion, 2 hours continuous use |
Illumination | 8 adjustable white LEDs in ring configuration |

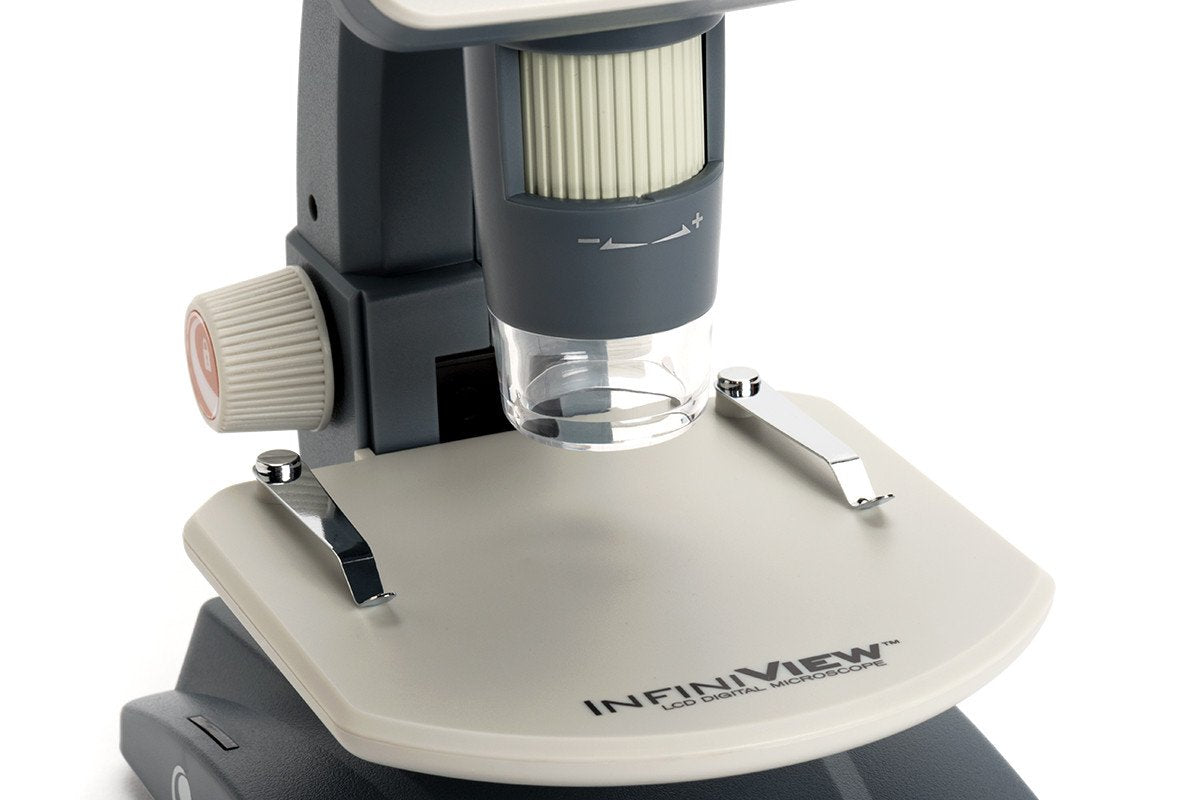

Stage | Fully adjustable with metal clips |
Memory | Micro SD card slot, supports up to 32G card- (card not included) |
Software Compatibility | Windows XP or better, Windows: XP/ Vista/ 7/ 8, Mac OS X 10.6 or 10.7 |
Software | Proprietary Celestron Portable CapturePro software |
Screen Resolution | 320 x 240 pixels |
Dimensions | 149mm x 104mm x 227mm (5.8" x 4.1" x 8.9") |
Weight | 56 oz (1600 g) |
