• Celestron CGX-L Equatorial 925 SCT Bundle

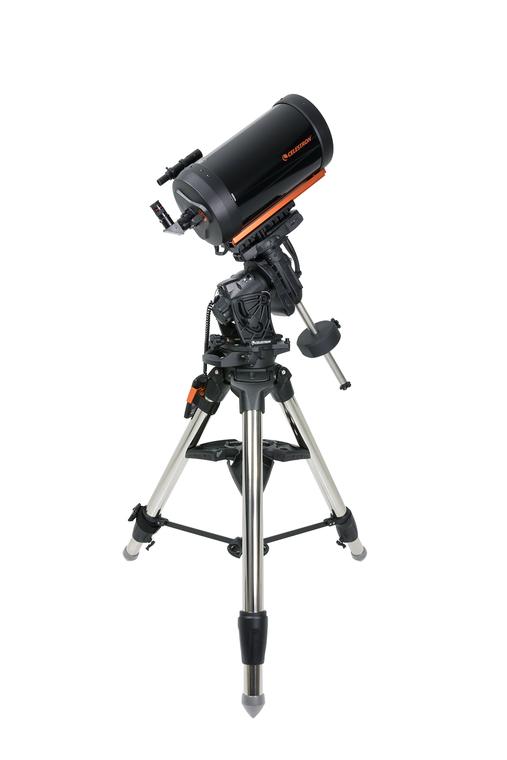

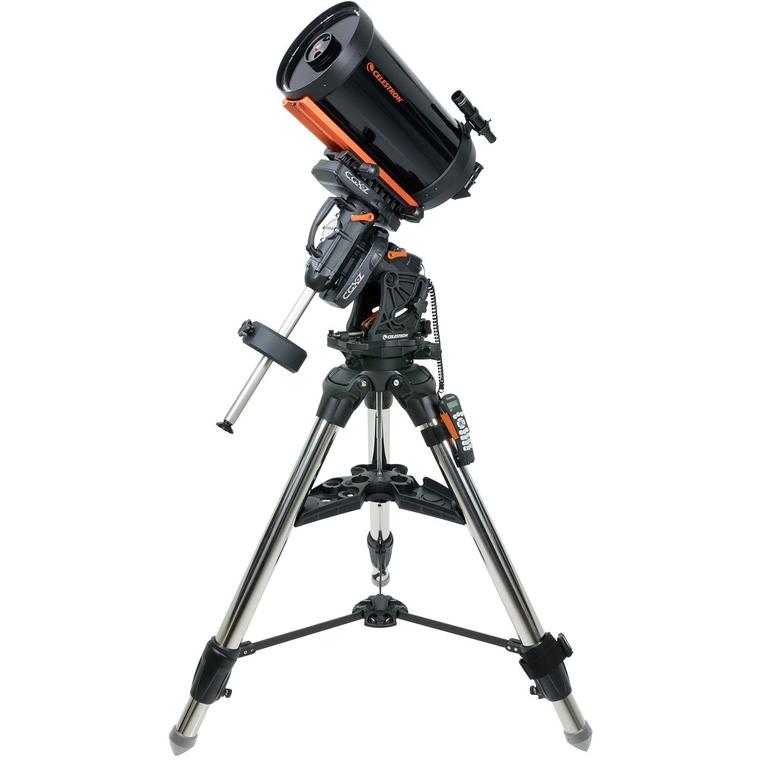

Celestron CGX-L Equatorial 925 SCT Bundle

**United States Shipping Only**

  • 9.25" Schmidt-Cassegrain Optical Tube Assembly
  • Aluminum Optical Tube
  • Celestron's premium StarBright XLT coatings
  • 2350 mm focal length (f/10)
  • 25 mm eyepiece included (94x)
  • Visual back allows for use with 1.25" accessories
  • 6x30 finderscope to help accurately find objects
  • Star diagonal provides more comfortable viewing position when observing objects that are high in the sky
  • Includes dovetail rail compatible with CGE mount

      Celestron's newly designed CGX-L Computerized Equatorial mount is the latest addition to our fully computerized equatorial mount series.  Capable of carrying  Celestron’s largest optical tubes with ease, CGX-L is designed for backyard observatories and remote imagers looking for exceptional load capacity to weight ratio, compact design, and innovative features that fully support large telescopes, imaging kits, and the latest in wireless tech accessories.

      Key design goals included larger 144 mm diameter worm wheels which provide smoother operation and can more accurately drive heavier loads, longer 270 mm dovetail saddle to support larger optical tubes, remote operation friendly features such as home and limit optical sensors, easier polar alignment adjustments, and better cable management overall. In addition to that, we’ve made mechanical and ergonomic improvements throughout to make the mount sturdier, easier to use, and easier to transport.  COMPACT.  ERGONOMIC.  INNOVATIVE.


      Computerized Mount Features:

      New CGX-L Features

        • Increased 75 lb load capacity. Exceptional load capacity to weight ratio
        • Additional Aux accessory ports and autoguider port on the Dec axis for better cable management
        • Larger 144 mm diameter worm wheels to better and more accurately drive heavier loads
        • Longer 270 mm dovetail saddle to better support larger optical tubes
        • Massive 70 mm stainless steel tripod legs with a wider stance for improved stability under heavy loads
        • New accessory tray holds three 1.25” and two 2” eyepieces with an upright stand for your smartphone or tablet
        • Heavy duty, 31.5 mm stainless steel counterweight shaft to support additional counterweights
        • Supports WiFi and wireless operation accessories such as SkyFi III.

      Mount Features:

      • Compact, lower profile equatorial head provides improved stability and portability. Sturdier and more rigid with quicker dampening time
      • Improved motors provide more torque, better slewing and tracking under heavy loads
      • Heavy duty belt-drive system minimizes backlash while providing smooth motor operation at full capacity
      • Clear windows built into motor covers so pulleys and belts can be monitored
      • Spring-loaded brass worm wheel and stainless steel worm gear reduce friction and provide optimum gear mesh
      • Internal cabling for worry-free remote operation. Power input and lower accessory ports remain stationary while the mount slews to avoid snags
      • Internal hard stops for both axes prevent cable tension and tripod strike
      • Internal optical sensors on both axes for simple and safe remote operation
      • -Home sensors allow the mount to always start in the index position regardless of orientation before a power reset
      • -Limit sensors automatically shut off slewing or tracking before reaching the hard stop fail safe
      • Adjustable EQ head position to optimize center of gravity over the tripod and fully utilize the increased 3°-65° latitude range
      • Dual-fit Vixen/CG-5 and Losmandy/CGE dovetail saddle
      • +20° of additional tracking past the meridian on either side
      • Redesigned tripod has a widened stance for added stability. The minimum tripod height has also been lowered per user feedback
      • Tripod legs can be collapsed with accessory tray installed for faster setup and transport

      Improved Ergonomics:

      • Integrated handles for easy transport and portability
      • All-new ergonomically designed dovetail clamping knobs
      • Innovative and improved polar alignment adjustment system
      • All-new ergonomic adjustment knobs with reduced friction for smooth and easy positioning under full loads. Stationary latitude knob with a newly-designed linkage system greatly reduces the amount of friction when polar aligning the mount. Redesigned azimuth adjustment with low-friction Teflon bearings to make adjustments easy under full load. No more binding, rough adjustments!
      • Easy to read latitude scale


      • NexStar+ hand control with USB port
      • USB 2.0 port used to connect directly to PC with PWI Software
      • 2 available autoguider ports for optimum cable management
      • PEC sensor and PPEC ready
      • Threaded 12VDC power input barrel connector
      • Internal Real Time Clock (keeps time and site information saved)
      • On/Off rocker switch with red LED

        **United States Shipping Only**

        **FREE Shipping on Celestron Bundles**

        Starry Night Pro Plus download emailed within 1-2 business days when selected.  Learn more about the world-class desktop planetarium, Starry Night Pro Plus, here: http://store.simcur.com/proplus

        $4,599.00 USD $4,850.00
