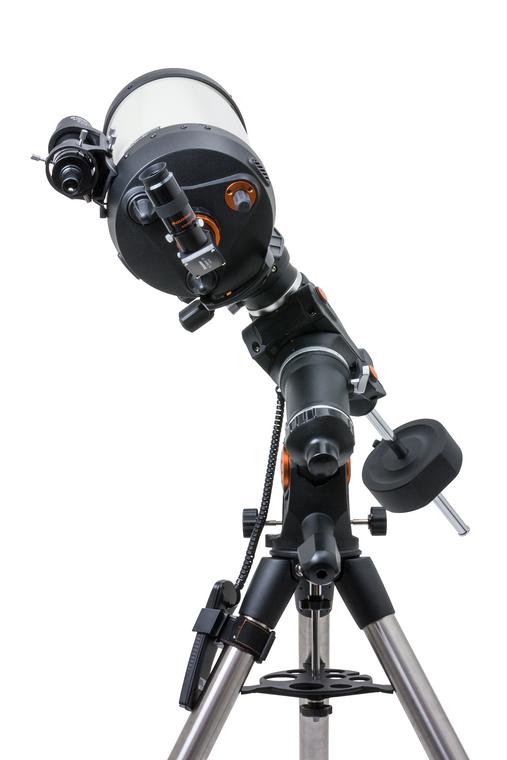

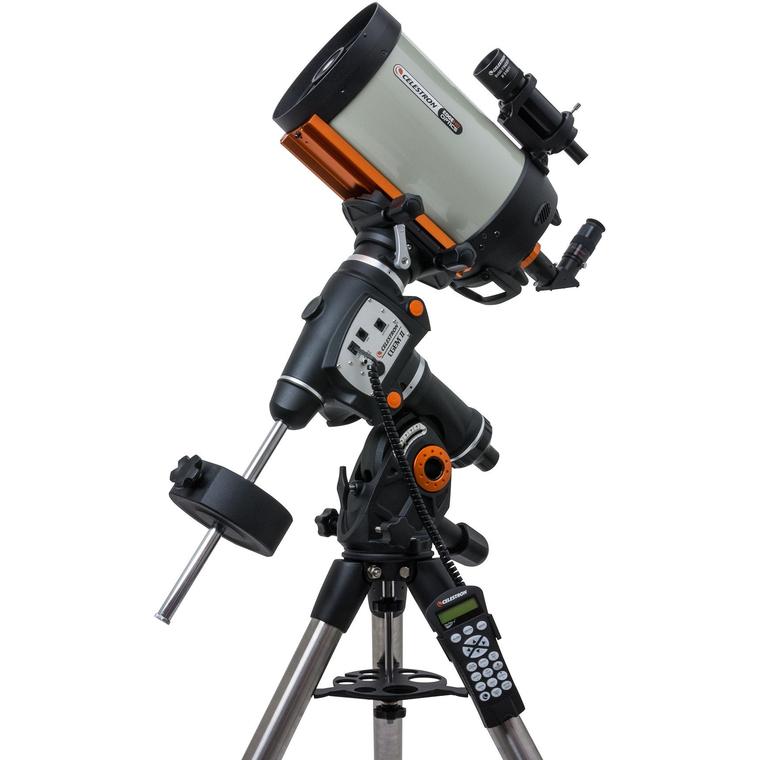

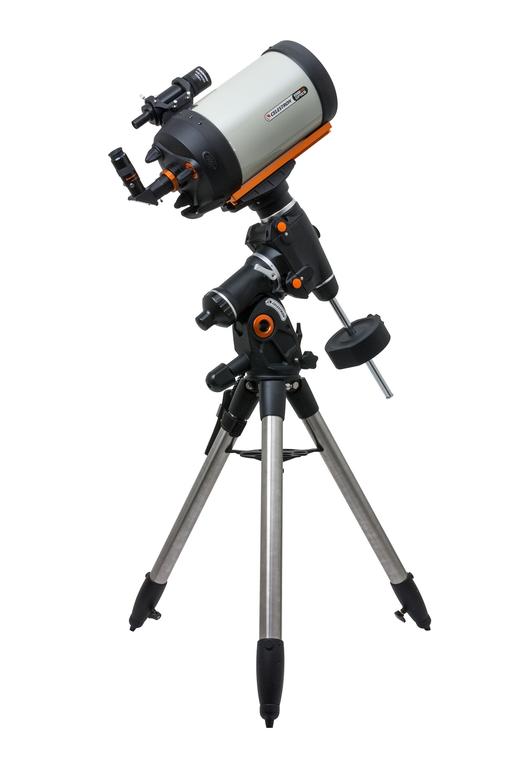

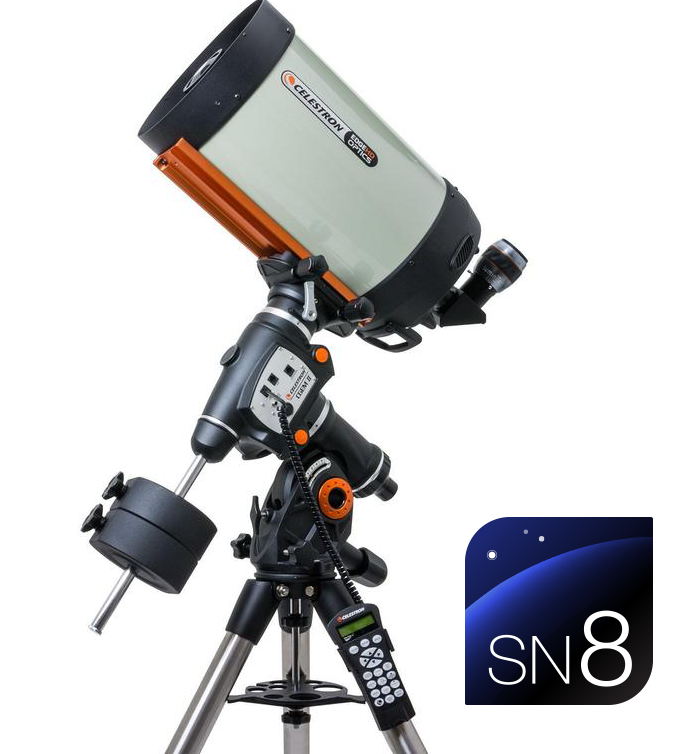

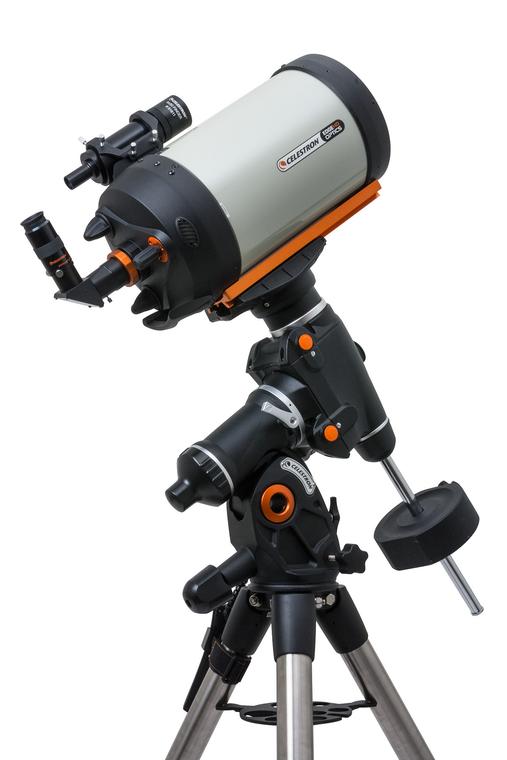

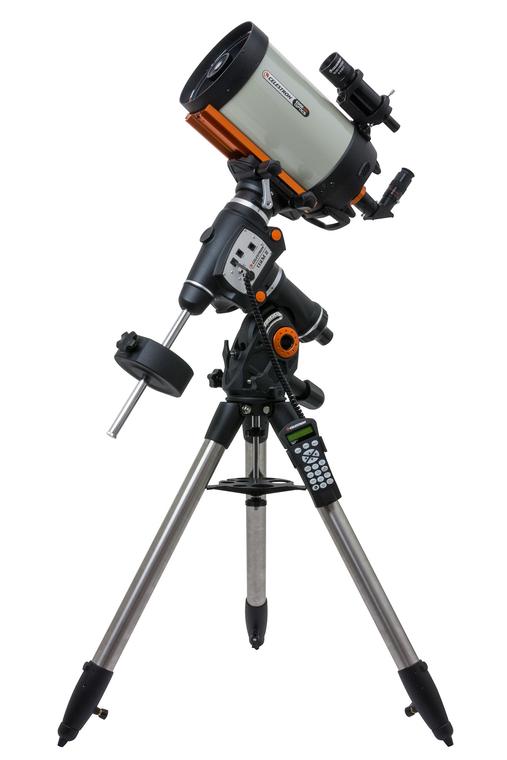

CGEM II 1100 HD combines Celestron's newly redesigned CGEM II computerized equatorial mount with its acclaimed EdgeHD optical system. With an optical tube assembly weighing only 28 lbs., this telescope is still portable enough to be taken to dark skies, and has 89% more light gathering power than an 8" telescope and 40% more than the 9.25".
OPTICAL TUBE INFO:
See the Universe in HD
EdgeHD is an aplanatic, flat field Schmidt-Cassegrain telescope that produces aberration-free images across a wide visual and photographic field of view. The optical system was designed to reduce more than just off-axis star coma; it also provides an astrograph-quality flat focal plane all the way to the edge of the field of view.
True Astrograph Quality
Many optical designs that advertise themselves as "astrographs" actually only produce pinpoint stars across a curved focal plane. While this may be acceptable for some visual observing, stars will appear out of focus at the edge when used with the flat chip sensor of a digital camera. EdgeHD optics produce a focal plane more than three-times flatter than a standard Schmidt-Cassegrain telescope and dramatically flatter than competing coma-free designs. This guarantees you visibly sharp stars across some of the largest CCD chips available today. Learn more about EdgeHD technology.
Superior edge performance not only creates rounder, more pleasing stars, but actually improves the resolution and limiting magnitude when compared to telescopes of equal aperture. With Celestron’s StarBright XLT optical coatings on every surface, EdgeHD optics gives you maximum light throughput across the widest visual and photographic spectrum.
In addition to EdgeHD’s optimized optical design, the telescope tube has been redesigned to make sure you get the most from your optics each and every night.
Every EdgeHD that ships has been tested not only for the surface quality of each optical component, but also with a camera and artificial star to ensure the imaging system meets our rigid quality assurance. This “final acceptance test” confirms the EdgeHD will perform in the field and deliver high-quality astroimages.
A fresh update to the venerable CGEM mount, the CGEM II has a fresh, attractive, bold appearance and is capable of carrying Celestron’s higher-end SCT optical tubes (up to 11") securely and vibration free, which is ideal for both imaging and visual observing. Capable of holding 40 lbs. of payload and slewing at 5° per second, you will be able to instantly point to any of the celestial objects in the database.
CGEM II was designed to be ergonomically friendly with large Altitude and Azimuth adjustment knobs for quick and easy polar alignment adjustment. The internal RA and DEC motor wiring provides a clean look and an easy and trouble free set up.
The CGEM II series features Celestron’s innovative Polar alignment procedure called All-Star™. All-Star allows users to choose any bright star, while the software calculates and assists with polar alignment. Another great feature of the CGEM II sure to please astroimagers, is the Permanent Periodic Error Correction (PEC) which will allow users to train out the worm gears periodic errors, while the mount retains the PEC recordings.
For objects near the Meridian (imaginary line passing from North to South), the CGEM II will track well past the Meridian for uninterrupted imaging through the most ideal part of the sky. The CGEM II mount has a robust database with over 40,000 objects, 100 user defined programmable objects and enhanced information on over 200 objects. Celestron's CGEM II mount is the perfect fit between the Advanced Series and CGE Series. Offering the portability of the Advanced Series and the precision of the CGE.
|Aperture||279.4 mm (11")|
|Focal Length||2800 mm (110")|
|Focal Length of Eyepiece 1||23 mm (0.91")|
|Magnification of Eyepiece 1||122x|
|Star Diagonal||2" w/ 1.25" Star Diagonal|
|Highest Useful Magnification||660x|
|Lowest Useful Magnification||40x|
|Limiting Stellar Magnitude||14|
|Resolution (Rayleigh)||0.5 arc seconds|
|Resolution (Dawes)||0.42 arc seconds|
|Light Gathering Power (Compared to human eye)||1593x|
|Secondary Mirror Obstruction||95 mm (3.75")|
|Secondary Mirror Obstruction by Diameter||34%|
|Secondary Mirror Obstruction by Area||12%|
|Optical Coatings||StarBright XLT|
|Optical Tube Length||610 mm (24")|
|Optical Tube Weight||28 lbs (13 kg)|
|Dovetail||CGE Dovetail Bar|
|Mount Type||Computerized Equatorial|
|Instrument load capacity||40 lbs (18 kg)|
|Height adjustment range (includes mount and tripod)||1346 - 1651 mm (53 – 65")|
|Tripod Leg Diameter||50.8 mm (2") Steel tripod with graduated markings on lower section|
|Latitude adjustment range||15° - 70°|
|Total EQ Head Weight||41 lbs (18.6 kg)|
|Tripod Weight||20 lbs (9 kg)|
|Weight of Counterweights||1 x 17 lbs|
|Slew Speeds||9 slew speeds|
|Tracking Rates||Sidereal, Solar and Lunar|
|Tracking Modes||EQ North & EQ South|
|Dovetail Compatibility||Dual saddle plates (Vixen and CGE saddle)|
|Number of Auxiliary ports||2 (1x Hand control port and 1x AUX Port for optional accessories)|
|Power Requirements||12 VDC, 3.2 amps|
|Motor Drive||Low cog DC servo motors|
|Alignment Procedures||AutoAlign, 2-Star Align, Quick Align, 1-Star Align, Last Alignment, Solar System Align|
|Periodic Error Correction||Yes|
|Computer Hand Control||Double line, 16 character Liquid Crystal Display; 19 fiber optic backlit LED buttons, USB 2 0 port for PC connection|
|Database||40,000+ objects, 100 user defined programmable objects Enhanced information on over 200 objects|
|Software||Starry Night Special Edition|
|Included Accessories||CGEM II Equatorial Head|Tripod|Accessory Tray|1 x 17 lbs counterweight|NexStar+ Hand Control|DC Power Cable (plugs into cigarette lighter socket)|8 mm Allen wrench (contained in rear carry handle)|
