Celestron Advanced VX 9.25" EdgeHD Telescope


**United States Shipping Only**  **Free Shipping for Celestron Scopes**
  • 9.25” (235mm) f/10 EdgeHD optical tube fully corrects for coma and field curvature, delivering a truly flat field
  • Native f/10 focal ratio can achieve the image scale necessary to capture the smallest of deep sky objects—or image at f/7 with optional focal reducer and f/2 with third-party lens assembly
  • Premium patented StarBright XLT optical coatings provide maximum light transmission
  • Compact and portable Advanced VX mount offers a maximum instrument capacity of 30 lb with the same rigidity as our larger mounts and minimal flexure
  • Every feature an astroimager wants: PEC, an autoguider port, the ability to image across the meridian, and more.
  • Dual saddle plate is compatible with narrow CG-5 dovetails and wider CGE dovetail.
  • Accessories included: 25mm eyepiece, 1.25” Star Diagonal, and a 6x30 finderscope

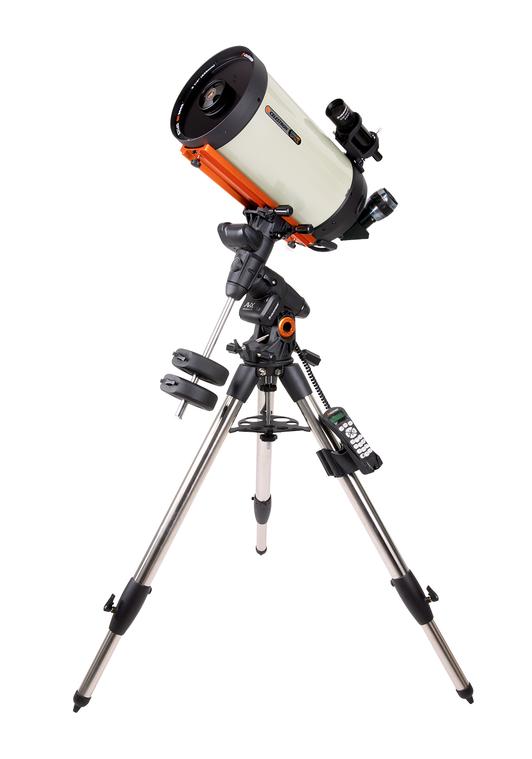

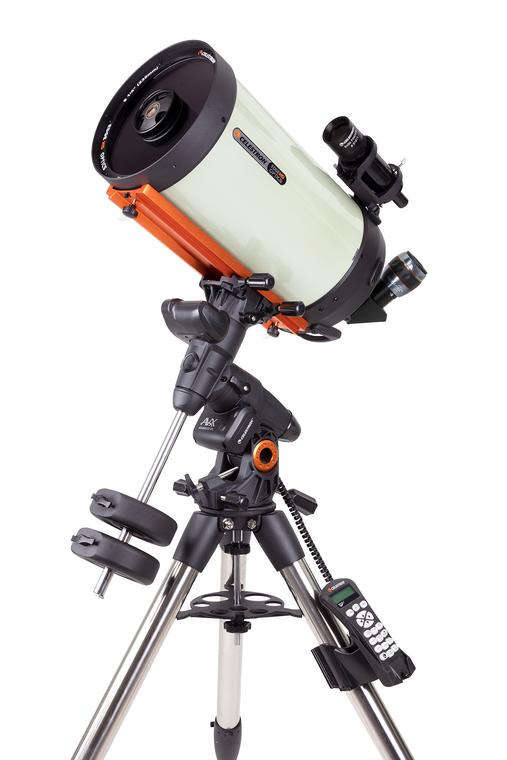

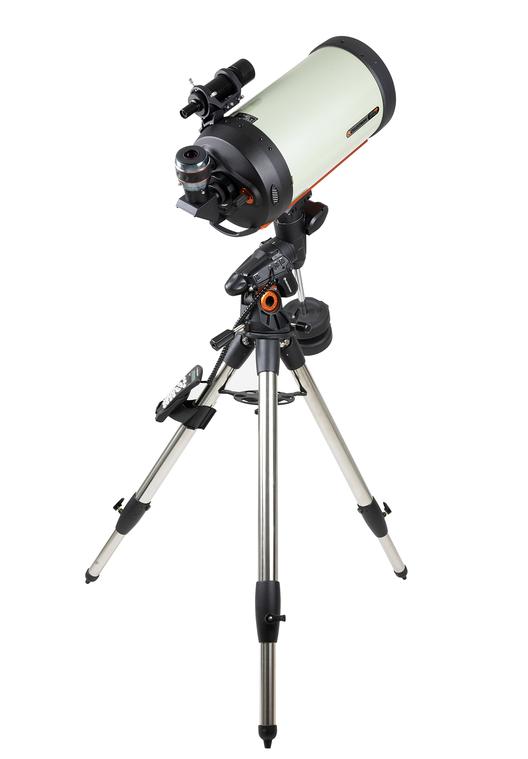

The 9.25” EdgeHD Advanced VX (AVX) telescope is a specialized instrument designed for astrograph-quality images that sets a standard in mid-level telescopes. With its EdgeHD optical tube and the sturdy Advanced VX equatorial mount and tripod, this kit provides unparalleled views of the planets, up-close views of the lunar surface (including craters and maria), and stunning deep sky images.

EdgeHD Optical Design
EdgeHD is an aplanatic, flat field Schmidt optical system that produces aberration-free images across a wide visual and photographic field of view. The optical system reduces more than just off-axis star coma; it provides an astrograph-quality flat focal plane all the way to the edge of the field of view.

True Astrograph Quality
EdgeHD optics produce a focal plane more than three-times flatter than a standard Schmidt-Cassegrain telescope and dramatically flatter than competing coma-free designs. This guarantees you visibly sharp stars across the largest imaging sensors available today. Learn more about EdgeHD technology.

Advanced VX Mount & Tripod
The Advanced VX mount is designed to provide superior performance for smaller telescopes while taking advantage of Celestron’s most advanced technologies: All-Star Polar Alignment, Celestron PWI telescope control software, SkyAlign, and permanently programmable periodic error correction (PPEC).

If you’re an experienced imager, you’ll love taking this portable mount to a dark sky site and enjoying all the conveniences of a larger observatory mount. Or, if you’re new to imaging, Advanced VX will help you get started with the hobby and keep up with your needs for years to come.

Computerized German Equatorial mount - The Advanced VX is the smallest of Celestron’s German equatorial mounts. The computerized GoTo capability automatically tracks objects as they move across the night sky. The Advanced VX mount includes ports for a hand control, an autoguider, and 2 AUX ports for optional accessories. The NexStar+ hand control gives you instant access to all the functions your mount has to offer. With automatic slewing and menu descriptions, astronomers of all skill levels can master this mount in just a few observing sessions. The Advanced VX also has an impressive tripod for its class with 2”-diameter steel tripod legs, providing an extra-wide stance for improved stability.

Payload capacity - The payload capacity for the Advanced VX is 30 pounds. It offers a sturdy platform for the 9.25” EdgeHD optical tube, even when paired with optional accessories like StarSense AutoAlign, Focus Motor, a finderscope, and a camera. Celestron's payload capacity does not include the weight of the counterweights.

Dual saddle plate - As of early 2019, Advanced VX mounts include a dual saddle plate that accommodates both CG-5 and CGE-style dovetails. Switching between the two saddle plates is as simple as moving the hand knobs into a separate set of holes. This means you can use your Advanced VX mount not only with the 9.25” EdgeHD, but virtually any optical tube within Advanced VX’s weight limit. The mount is compatible with Vixen format dovetails 100mm or longer, but not compatible with Losmandy D format plates (regardless of plate manufacturer).

Software

Starry Night Software - Also included with your purchase is a free download of Celestron’s Starry Night Special Edition Software. This advanced software by Simulation Curriculum offers detailed information about celestial objects and helps you plan your next observing or imaging session. The Special Edition software also includes telescope control via your PC.

Accessories
The Advanced VX 9.25” EdgeHD comes complete with a 25mm eyepiece, a 1.25” star diagonal, and a 6x30 finderscope. To increase your field of view without sacrificing performance, add the optional EdgeHD reducer lens, bringing your focal ratio down to f/7. An optional Barlow lens can provide additional magnification for high-resolution planetary, lunar, and solar imaging. And, of course, all EdgeHD optical tubes are Fastar-compatible for ultra-fast f/2 wide field imaging. Each EdgeHD tube is fitted with a removable secondary mirror and is opto-mechanically aligned on a laser bench to ensure it is axially symmetric in any configuration.



Specifications:

OPTICAL TUBE INFO:
Optical Design EdgeHD
Aperture 235mm (9.25")
Focal Length 2350mm (93")
Focal Ratio f/10
Focal Length of Eyepiece 1 23mm (.91")
Magnification of Eyepiece 1 102x
Finderscope 9x50
Star Diagonal 2" with 1.25" adapter
Optical Tube Aluminum
Highest Useful Magnification 555x
Lowest Useful Magnification 34x
Limiting Stellar Magnitude 14.4
Resolution (Rayleigh) .59 arc seconds
Resolution (Dawes) .49 arc seconds
Light Gathering Power (Compared to human eye) 1127x
Secondary Mirror Obstruction 85mm (3.35")
Secondary Mirror Obstruction by Diameter 36%
Secondary Mirror Obstruction by Area 13%
Optical Coatings StarBright XLT
Optical Tube Length 559mm (22")
Optical Tube Diameter 271.78mm (10.7")
Optical Tube Weight 21 lbs (9.53 kg)
Dovetail CGE Dovetail bar
MOUNT INFO:
Mount Type Computerized Equatorial
Instrument load capacity 30 lbs (13.6 kg)
Height adjustment range (includes mount and tripod) 1118mm - 1626mm (44" – 64")
Tripod Leg Diameter 50.8mm (2") Stainless Steel
Latitude adjustment range 7° - 77°
Mount Head Weight 17 lbs (7.71 kg)
Accessory Tray Yes
Tripod Weight 18 lbs (8.16 kg)
Weight of Counterweights 2 x 12 lbs
Slew Speeds 9 slew speeds - max speed 4°/second
Tracking Rates Sidereal, Solar and Lunar
Tracking Modes EQ North & EQ South
GPS N/A
Dovetail Compatibility Dual saddle plates (CG-5 and CGE saddle)
Number of Auxiliary ports 3 Aux ports (1 hand control and 2 AUX ports for optional accessories
Autoguide port Yes
USB Port Yes, input on Hand Control
Power Requirements 12V DC 3.5A (tip positive)
Motor Drive DC servo motors
Alignment Procedures 2-Star Align, 1-Star Align, Solar System Align, Last Alignment, Quick Align
Periodic Error Correction Yes
Computerized Hand Control 2 line x 18 character backlit Liquid Crystal Display, 19 LED backlit buttons, USB 2.0 port for PC connection
NexStar+ Database 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects
Software Celestron's Starry Night Special Edition Software, SkyPortal App
Total Kit Weight 47 lbs (21.31 kg)
Included Items Advanced VX Equatorial Head | Tripod | Accessory Tray | 2 x 12 lbs counterweights | NexStar+ Hand Control | DC Power Cable (item# 18769) | Hand Control Holster
