Celestron Digital Microscope Imager 2MP


OVERVIEW

  • 2MP image sensor makes a traditional microscope into a digital microscope.
  • Capture images and video of your specimens via your computer.
  • The microscope imager works with 23 mm to 30 mm diameter eyepieces.
  • Connect the imager to your computer via USB 2.0 cable.
  • New Celestron S-Viewer imaging software for Windows 7 /8 / 10.
  • Imager itself compatible with Mac OS Photo Booth and Quick Camera.

DESCRIPTION

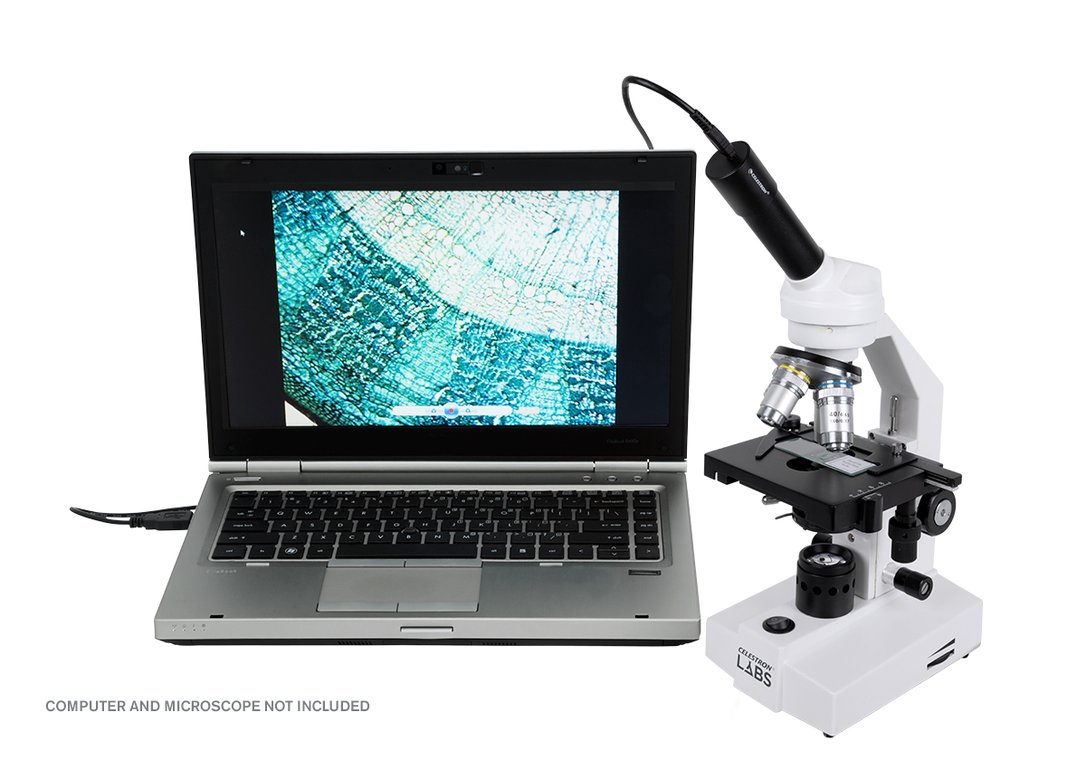

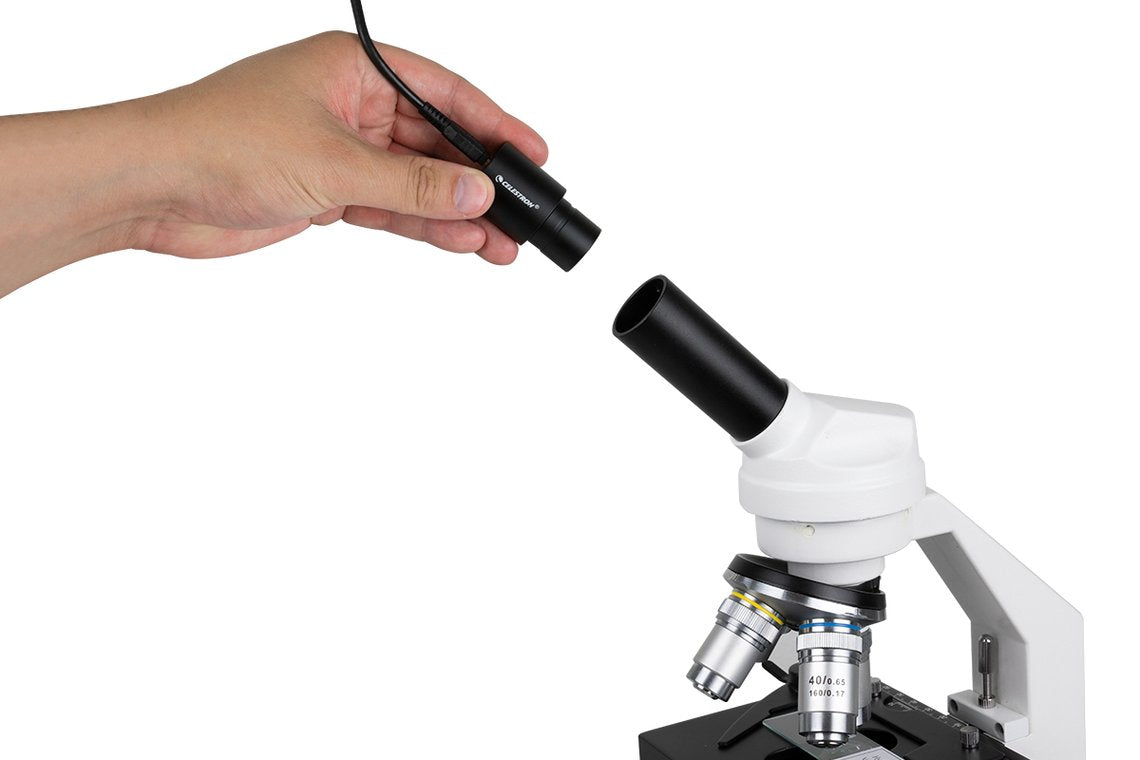

Turn your traditional microscope (stereo and biological) into a high-resolution digital microscope using a 2MP CMOS sensor digital microscope imager.  Place the imager over the eyepiece of your microscope and stream the image to your computer via a USB cable. It’s the perfect tool for hobbyists, teachers, students, medical labs, exhibits and more.

Celestron S-Viewer Software

Use the included Windows software to capture images and video of your discoveries. Measure and annotate your specimens with built-in measurement and marking tools.

Note – S-Viewer software is only compatible with Windows (XP, Vista, Windows 7/8/10). Imager can be used directly as an external camera on Mac OS systems via Photo Booth or Quick Camera.

SPECIFICATIONS


Sensor type Color CMOS
Imaging sensor size 1/3.2"
Pixel size 2.8μm×2.8μm
Effective pixels 1600 x 1200
Max resolution 1600 x 1200
Exposure Controls Auto/Manual
Gain Control Auto/Manual
White Balance Auto/Manual
Image Frame Rate 15fps @ 1600 x 1200 | 15fps @ 1280 × 960 | 30fps @ 640 × 480
Control interface USB 2.0
Control Software Operating System Windows XP, Vista, Win7, Win8, Win10
Power USB 2.0 supported
Operating Temp 0° to 50° C
Weight (without box) 90g
Dimensions (without box) 30mm * 53.5

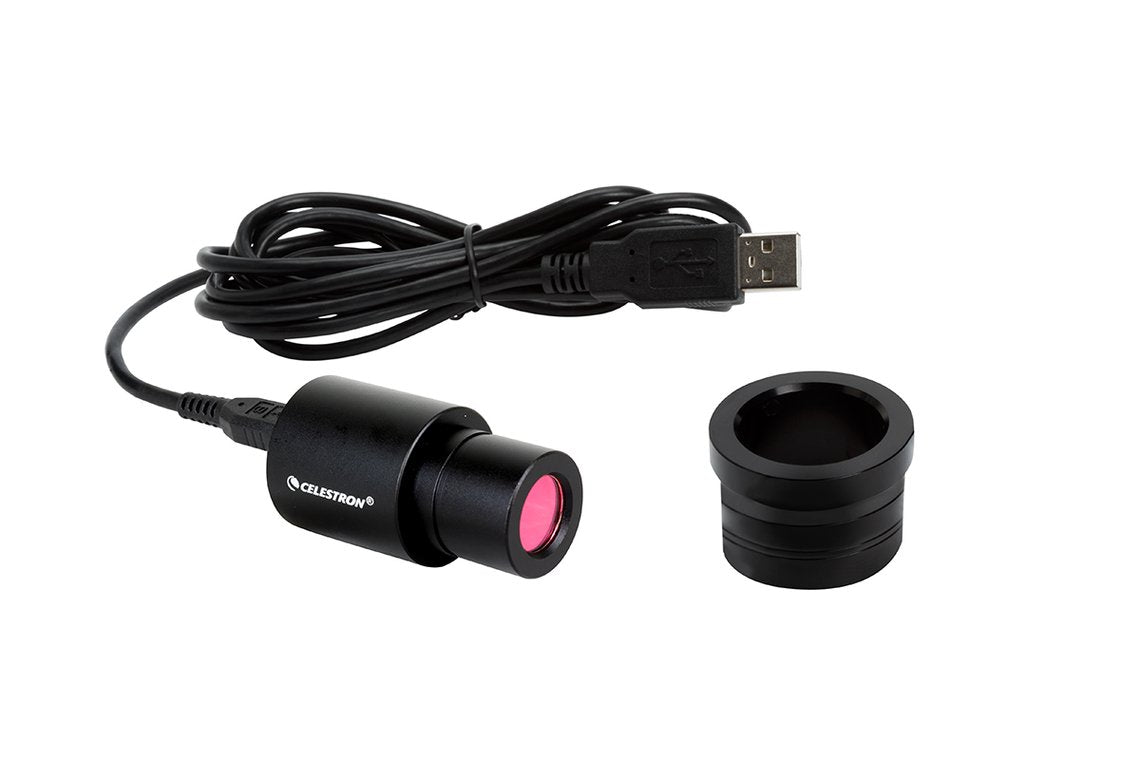

Included Accessories Digital Microscope Camera, USB 2.0 cable, CD with control software S-Viewer and driver, Adapter ring (23.2mm - 30mm)
California Residents View Proposition 65 Warning
**United States Shipping Only**
**FREE Shipping on Celestron Products**
$69.95 USD
